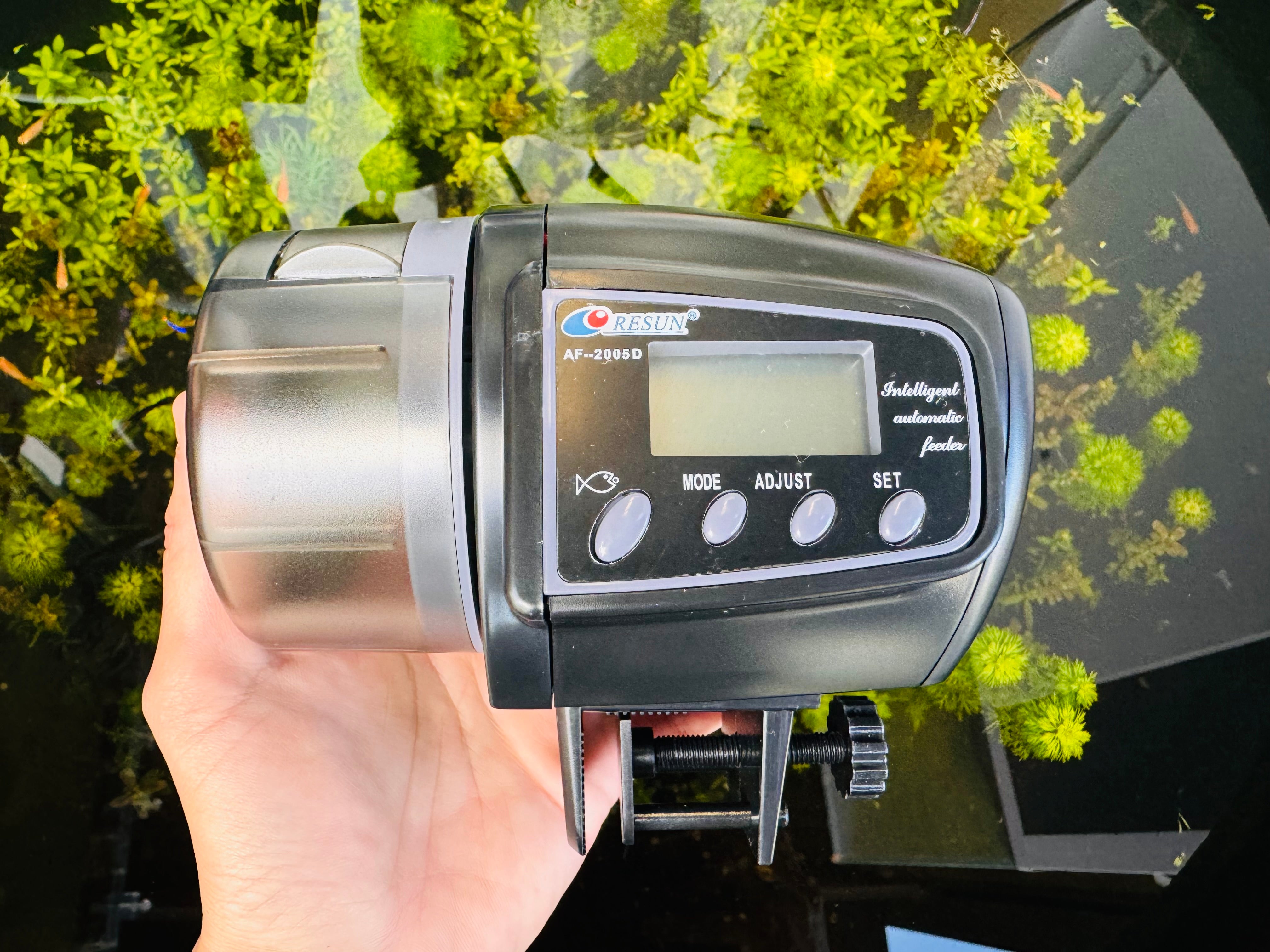

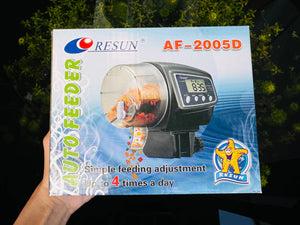

Auto Feeder

FEATURES

• Moisture proof for the food
• Good for flakes or granulates
• Easy filling of the food drum
• Maximum 4 feedings per day

INSTRUCTIONS

Battery

Remove the battery cover and insert the batteries into the casing and reattach the cover by applying pressure to the top and bottom clips.

AF-2005D: 2xAA 1.5V alkaline batteries

AF-2009D: 2xAAA 1.5V alkaline batteries

Attention:

Do not use rechargeable batteries.

If the LCD displays "Lo", change the battery immediately. If the batteries are not changed within 3 days, all the set programs will be invalid to avoid the feeding port stops at the improper position.

Clock Setting

1. Press the "SET" button and the "HOUR" will flash; Press "ADJUST" to set the
   "HOUR";
2. To set the "MINUTES", press "MODE", the "MINUTES" will flash; Press "ADJUST to set the "MINUTES"
3. Once the correct time is displayed, press "SET" to store the current time.

Setting feeding times and rotations

This digital feeder is capable of programming up to four feeding times per day with a maximum of two turns per feeding session. All of these functions can be adjusted independently.

1.Press "MODE" and "00:00" is displayed on the LCD.

2. Press"SET and the "HOUR" will blink, adjust the "HOUR" using the "ADJUST" Mito, once the correct feeding hour is displayed, press "MODE" to set the

"MINUTES"

3.Press "ADJUST" to adjust the "MINUTES".

This fuMODE" again and the digit "" blinks in the top portion of the display. display ation indicates the first feeding cycle of the day. Press "ADJUST to disation single arrow pointing dowingard. Press"ADJUST once for a single roanyon, or twice for two rotations. The number of arrows will show how miny rotations are programmed. The rotations are dispensed at a one minute interval.

5.Press "SET" to store the feeding time.

• PressaMocedures 1 through 4 to set the next feeding time and rota curre PressmeDE to cycle through all four the deg femes to return to the current set time. Up to four feeding times can be set each day.

Package include : 1 x auto feeder . ( no battery , no usb charge )

Limited Quantity Available - Will Sell out Fast!
